Ever wondered what makes the perfect shear blade? In this article, we’ll explore the fascinating world of die steels, from cold-work to hot-work varieties. You’ll uncover the secrets behind their unique properties and learn how different materials can enhance the performance and longevity of cutting tools. Get ready to dive into the mechanics of shear blades!
Features and Applications:

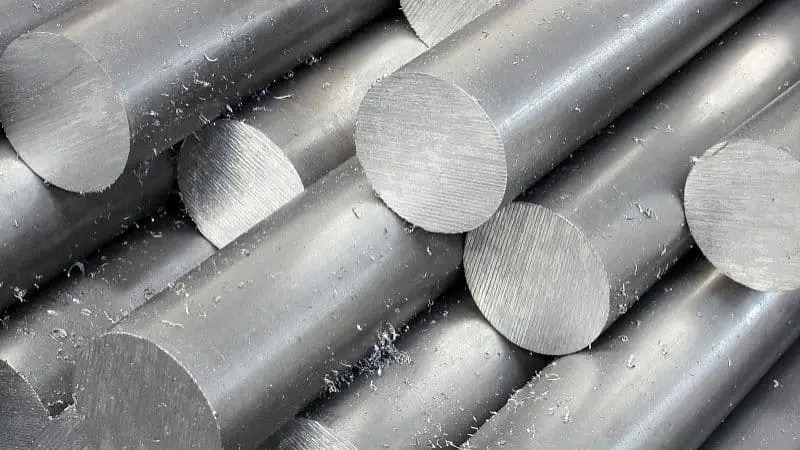

LD (7Cr7Mo2V2Si) is a premium-grade, high-toughness cold-work die steel originally engineered for cold heading dies. Its designation “LD” reflects its primary application in “cold heading” processes.
In industrial applications, LD steel excels in the fabrication of cold heading, cold extrusion, and cold forming tools that demand exceptional toughness. It demonstrates superior performance characteristics compared to conventional tool steels such as Cr12 and W6Mo5Cr4V2.
As a matrix-type die steel, LD is distinguished by its unique combination of properties:
The exceptional strength-toughness balance and wear resistance of LD steel contribute to its extended service life, which can exceed that of other tool steels like Cr12MoV, W18Cr4V, W6Mo5Cr4V2, Cr12, GCr15, and 9SiCr by a factor of ten or more. This longevity is particularly evident in cold cutting shear blade applications.
Mechanical Properties:
Achievable blade hardness: 57-63 HRC
Heat Treatment Specifications:
Note: Precise heat treatment parameters may vary based on section thickness and desired final properties. Multiple tempering cycles are often recommended for optimal performance.
Features and Applications:
H13 Steel (4Cr5MoSiV1) is a premium-grade, air-hardening die steel renowned for its exceptional toughness and superior resistance to both hot and cold fatigue. This versatile alloy exhibits remarkable thermal fatigue cracking resistance, excellent anti-adhesion properties, and minimal reactivity with molten metals. These characteristics make H13 Steel an ideal choice for manufacturing critical components in high-temperature applications, including hot forging dies, extrusion tooling, and thermal shear blades.
While H13 Steel shares performance similarities with 4Cr5MoSiV Steel, its distinguishing feature lies in its elevated vanadium content. This key compositional difference enhances H13’s high-temperature performance, allowing it to maintain its mechanical properties at temperatures up to 600°C (1112°F), significantly outperforming standard 4Cr5MoSiV Steel in extreme thermal environments.
As a representative hot work die steel, H13 excels in applications involving cyclic heating and cooling, such as die-casting molds for aluminum alloys. It is particularly well-suited for hot shearing operations on steel plates at temperatures up to 800°C (1472°F), where it maintains its cutting edge and dimensional stability under severe thermal and mechanical stresses.
Mechanical Properties:
Heat Treatment Specification:
Note: The precise heat treatment parameters may vary depending on the specific application requirements and desired final properties. Multiple tempering cycles are often employed to achieve optimal toughness and dimensional stability.
Features and application:

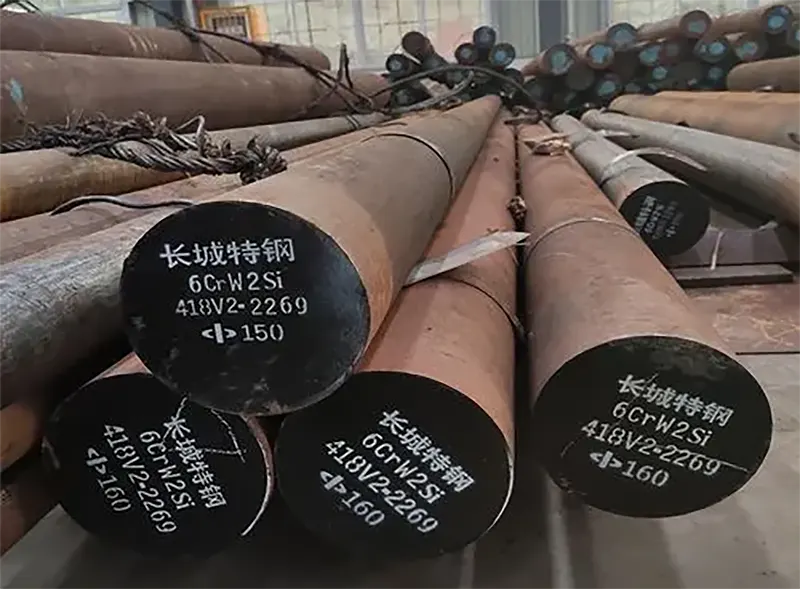

6CrW2Si is a premium alloy tool steel engineered by incorporating a precise amount of tungsten into chromium-silicon steel. This tungsten addition facilitates the formation of finer grain structures during quenching, resulting in enhanced toughness under tempering conditions. The steel’s microstructure optimization leads to superior mechanical properties and performance in demanding applications.
Compared to its counterparts 4CrW2Si and 5CrW2Si, 6CrW2Si steel exhibits higher quenching hardness and improved high-temperature strength. These characteristics make it particularly suitable for manufacturing hydraulic shear blades that must withstand significant impact loads while maintaining excellent wear resistance. 6CrW2Si steel excels in shearing applications for both ordinary steel and hard-textured stainless steel plates, offering versatility across various industrial cutting processes.
Mechanical properties:
The high hardness range ensures optimal cutting performance and extended tool life in severe shearing operations. This hardness level is carefully balanced with the steel’s toughness to prevent premature blade failure under impact loads.
Heat treatment specification:
The heat treatment process is critical for achieving the desired mechanical properties. Quenching from the specified temperature range ensures complete austenization and subsequent martensite formation. The tempering temperature range is precisely controlled to relieve internal stresses while maintaining high hardness and wear resistance. This carefully designed heat treatment regimen optimizes the steel’s microstructure for peak performance in hydraulic shearing applications.
Features and application:
W6Mo5Cr4V2 is a premium grade high-speed tool steel, also designated as M2 or AISI M2, commonly known as “high-speed steel” (HSS). This high-carbon, high-alloy tool steel is engineered for superior performance in high-speed cutting applications.
As a tungsten-molybdenum series steel, W6Mo5Cr4V2 exemplifies the hallmark properties of HSS: exceptional hardness, wear resistance, and thermal stability (also termed “red hardness”). It maintains its cutting edge integrity at elevated temperatures, with minimal hardness loss up to 500-600°C (932-1112°F).
While W6Mo5Cr4V2 offers comparable high-temperature hardness to W18Cr4V (T1 grade), it exhibits increased susceptibility to oxidation and decarburization. This necessitates meticulous control during thermal processing and heat treatment to preserve its optimal microstructure and properties.
The distinctive alloying composition of W6Mo5Cr4V2 enables cutting speeds significantly higher than those achievable with low-alloy tool steels. This makes it particularly well-suited for cutting tools operating under demanding conditions, including high cutting velocities, heavy loads, and elevated working temperatures. Its versatility extends to various sheet metal shearing applications across diverse industrial sectors.
Mechanical properties:
Heat treatment specifications:
Note: Multiple tempering cycles are typically recommended to achieve optimal secondary hardening and dimensional stability.
Features and Applications:
Cr12MoV is a premium-grade mold steel that exhibits superior characteristics compared to CR12, including enhanced hardenability, higher post-quench and temper hardness, increased strength, and improved toughness. This alloy demonstrates complete through-hardening capability for sections up to 300-400mm in diameter, with minimal distortion during the quenching process. However, it’s important to note that Cr12MoV exhibits limited plasticity at elevated temperatures.
The primary application of Cr12MoV is in the production of hydraulic shear blades, particularly those with large cross-sections, complex geometries, and high-load requirements. Blades manufactured from Cr12MoV demonstrate exceptional durability, capable of withstanding over 800,000 cutting cycles. This makes them ideally suited for cutting high-hardness materials such as stainless steel and silicon steel sheets, where prolonged tool life and consistent performance are critical.
Mechanical Properties:
This hardness range ensures optimal wear resistance and edge retention, crucial for maintaining cutting efficiency over extended periods of use.
Heat Treatment Specifications:
The specified heat treatment regimen is crucial for achieving the desired microstructure and mechanical properties. The relatively high austenitizing temperature ensures complete dissolution of carbides, while the low tempering temperature range maintains high hardness while slightly improving toughness and dimensional stability.
Note: For optimal performance, it’s recommended to perform multiple tempering cycles and to consider cryogenic treatment between quenching and tempering to minimize retained austenite and further enhance wear resistance.
Features and application:
9CrSi is a high-quality, low-alloy tool steel renowned for its exceptional hardness and wear resistance, coupled with moderate toughness. This steel grade exhibits excellent dimensional stability during heat treatment, making it suitable for precision cutting tools and measuring instruments. However, it is important to note its susceptibility to heat sensitivity, which can lead to surface hardening and an increased risk of cracking if not properly handled during manufacturing processes.
As a versatile low-alloy tool steel, 9CrSi demonstrates superior quenching characteristics and deep hardenability. These properties, combined with its stability during tempering, make it an ideal choice for applications requiring consistent performance under demanding conditions. Its ability to maintain sharp cutting edges and resist deformation under load contributes to its popularity in the tooling industry.
One notable application of 9CrSi is in the manufacture of hydraulic shear blades with complex geometries. These blades benefit from the steel’s minimal distortion during heat treatment, ensuring precise dimensional control. The high wear resistance of 9CrSi significantly extends the service life of the blades, while its optimized composition allows for efficient low-speed cutting operations, reducing heat generation and potential workpiece distortion.
9CrSi is particularly well-suited for shearing operations involving mild steel grades such as A3 and Q235. Its combination of hardness and toughness enables clean cuts with minimal burr formation, enhancing productivity and reducing the need for secondary operations.
Mechanical properties:
Heat treatment specifications:
Note: The precise heat treatment parameters may vary depending on the specific application and desired final properties. It is crucial to follow manufacturer recommendations and conduct proper testing to achieve optimal performance.
Features and application:

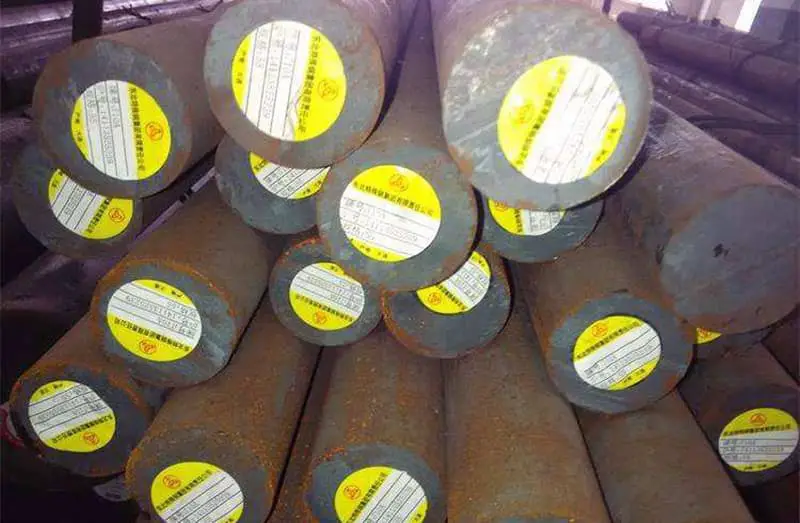

T10A is a premium-grade carbon structural steel renowned for its high strength and exceptional wear resistance. However, it exhibits low hot hardness, limited quenching capacity, and reduced hardenability, coupled with a tendency for significant quenching deformation. This steel grade is particularly well-suited for manufacturing shear blades operating in challenging cutting environments that demand superior wear resistance. It excels in applications where the blade is not subjected to sudden, severe vibrations and requires a balanced combination of toughness and the ability to maintain a sharp cutting edge. T10A is specifically utilized in the fabrication of shear blades designed for cutting ordinary A3 steel plates, a common material in industrial applications.
Mechanical properties:
This hardness range ensures an optimal balance between wear resistance and toughness, critical for the blade’s performance and longevity in industrial shearing operations.
Heat treatment specifications:
These precise heat treatment parameters are crucial for achieving the desired microstructure and mechanical properties in T10A steel. The quenching process at 770°C promotes the formation of martensite, while the subsequent tempering at 200°C helps relieve internal stresses and fine-tune the hardness-toughness balance. This carefully controlled heat treatment regimen is essential for optimizing the blade’s performance in its intended cutting applications.
Features and application:
45# steel, also known as AISI 1045 or C45 in international standards, is a medium carbon structural steel widely utilized in machinery manufacturing. It offers a balanced combination of strength, toughness, and machinability, making it suitable for various applications in the mechanical engineering field.
While 45# steel exhibits good cutting characteristics and favorable mechanical properties, its performance in high-wear applications such as plate cutting machine blades is limited. As a medium carbon steel, it has moderate hardenability, typically achieving a hardness range of HRC 42-46 through conventional heat treatment processes. To enhance its surface properties, a combination of quenching and tempering followed by high-frequency surface hardening is often employed.
The wear resistance of heat-treated 45# steel, while improved, is generally inferior to that of carburized steels. This characteristic makes it more suitable for cutting non-metallic sheets or in applications where extreme wear resistance is not critical. For metallic sheet cutting operations, especially those involving harder materials, more specialized tool steels or surface-hardened alloys are typically preferred.
Mechanical properties:
Heat treatment specifications:
Note: The exact heat treatment parameters may vary based on the specific application requirements and desired mechanical properties. Factors such as section thickness, cooling rate, and tempering time also play crucial roles in achieving the optimal balance of hardness, strength, and toughness for the intended use.
